Name: Affordable Flomasta Brass Side Entry Float Fill Valve, ½": Quality Design & Manufacture for Everyday Needs from USA.
SKU: ZGL5L 3663602420231
Price: 8.81 USD
Availability: InStock

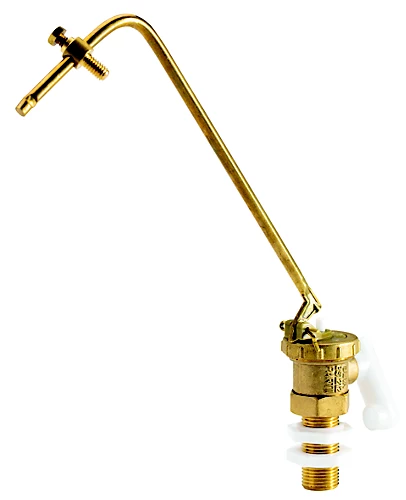

Flomasta Brass Side Entry Float Fill Valve, ½”

Original price was: $12.59.Current price is: $8.81.

Free Shipping over $25

Fast & reliable delivery options

Enjoy top quality items for less

Multiple safe payment methods

Manufacturer guarantee – 5 years
Comes with Instruction manual
Remove outer thread nut and adjust inner thread nut to the required position. Fit valve inside cistern, with the valve tail through the hole in the side of the cistern and nut against the inside surface. Replace outer nut and hand tighten. Carefully tighten using wrench. Do not over tighten. Wrap PTFE tape clockwise around the threads. Connect water supply pipe to the valve tail. Adjust the water outlet to the left or right. Fit ball float to float arm. Turn on water supply and check for leaks. To adjust the water level in cistern, slide ball float up or down float arm. Lock ball float in position.

Fittings & fixings included

Features and benefits

Quiet fill – Reduces noisy cistern refills compared to a standard fill valve, helping to keep disturbance to a minimum
Brass thread – High quality material that reduces the risk of cross threading and damage to the valve
Tested to 200000 cycles – To ensure the durability and quality of the valve
Low pressure – Giving confidence that this is the right product for any type of system
(Water supply certification) WRAS certified – Fully complies with all local market regulatory standards, ensuring the quality of the product
Anti-syphon – Prevents water contamination

Brand	Flomasta
Pack quantity	1
Inlet position	Side
Material	Brass
Minimum operating pressure	0.1bar
Model name/number	F-F-1030
Product depth	300mm
Product height	190mm
Product width	32mm
Suitable water pressure	Low pressure
Connection size (imperial)	½"
Standard	BS 1212
Water regulations	WRAS approved
Product code	3663602420231
