SPARES2GO Energy Saving 15 Minute To 2 Hour Electronic Boost Timer For Immersion / Room Heater

• Manufacturer guarantee-6 monthsCompatible boiler type-All boilers

Features and benefits

SPARES2GO Energy Saving 15 Minute to 2 Hour Electronic Boost Timer for Immersion / Room Heater

Simply press the button to increase the ON time for up to 2 hours

Two hour electronic, one button boost timer with visual indicator

Provides 4 pre-set delay-to-off outputs — Allows timed control of any mains electrical load up to 16 Amps resistive rating — 4 pre-set timed outputs: 15 minutes, 30 minutes, 1 hour or 2 hours

Suitable for installation on a surface or in-wall pattress box — Simply press up to 4 times to select boost output

Dimensions: 85 x 85 x 30mm

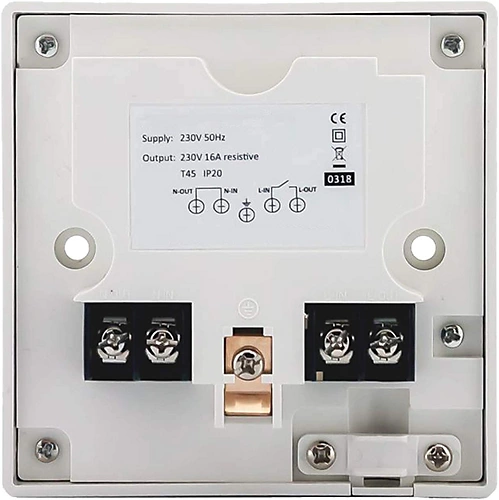

Connections: 4 x wire-protect screw terminals & earth park — Resistive Load: 16A — Temperature Rating: T45 — IP Rating: IP20 — Rating: 16A resistive — Accuracy: Quartz regulated — Mounting: Standard socket box — Power Supply: 220 – 240V AC 50Hz — For fixed supply wiring only

Class II Control / Protection Class IP20

Complies with European Norm EN 60730-1: 2011 Automatic Electrical Controls for Household & Similar Use

Complies with European Directives: LVD, EMC, RoHS — Not suitable for direct switching of lighting types: Fluorescent, HID, SON, LED — Use a contactor for discharge lamps

• SPARES2GO Energy Saving 15 Minute to 2 Hour Electronic Boost Timer for Immersion / Room Heater
• Simply press the button to increase the ON time for up to 2 hours — Two hour electronic, one button boost timer with visual indicator
• Provides 4 pre-set delay-to-off outputs — Allows timed control of any mains electrical load up to 16 Amps resistive rating — 4 pre-set timed outputs: 15 minutes, 30 minutes, 1 hour or 2 hours
• Suitable for installation on a surface or in-wall pattress box — Simply press up to 4 times to select boost output
• Dimensions: 85 x 85 x 30mm — Connections: 4 x wire-protect screw terminals & earth park — Resistive Load: 16A — Temperature Rating: T45 — IP Rating: IP20 — Rating: 16A resistive — Accuracy: Quartz regulated — Mounting: Standard socket box — Power Supply: 220 – 240V AC 50Hz — For fixed supply wiring only
• Class II Control / Protection Class IP20 — Complies with European Norm EN 60730-1: 2011 Automatic Electrical Controls for Household & Similar Use
• Complies with European Directives: LVD, EMC, RoHS — Not suitable for direct switching of lighting types: Fluorescent, HID, SON, LED — Use a contactor for discharge lamps
