Tower 22mm Motorised 2 Port Inline Zone Valve for Central Heating / Boiler Systems VAL222MV
- Manufacturer guarantee-6 months
Features and benefits

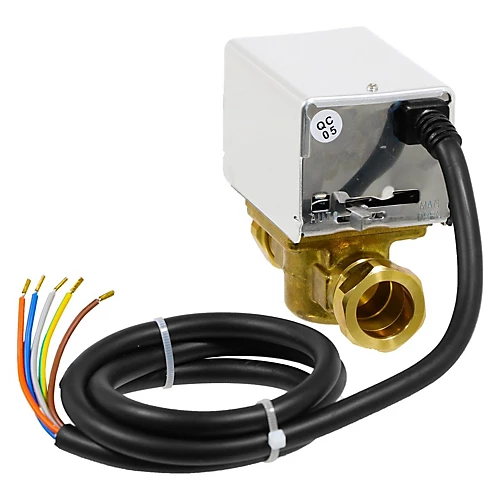

Tower Motorised 2 Port Inline Zone Valve made to fit Central Heating / Boiler Systems
These Tower 2-port motorised valves are designed to provide zone control for heating or hot water.

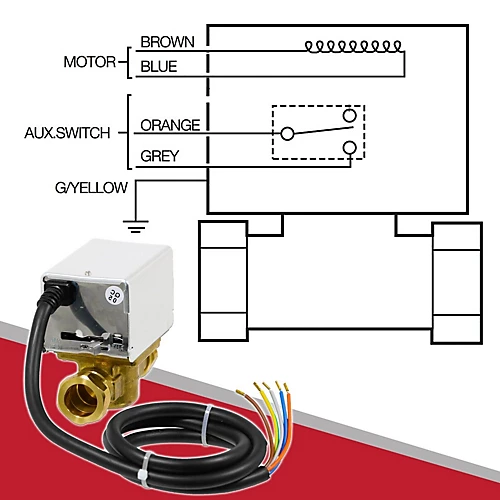

Features: Synchronous motor drive / spring return action — 1m 5-core flex — Industry standard flex colours: brown; blue; grey; orange; green/yellow — Auxiliary switch — Switch rating 3A resistive — Integrated manual lever for commissioning purposes
Specifications: Supply 230V 50Hz / power consumption 6W — Operating temperature range: +5 to 88 —
Maximum differential pressure 1 Bar — Maximum static pressure 10.0 Bar
Two port spring return valve with 22mm fittings and auxiliary switch (SPST), Switch rating 3Amp, Supply voltage 240V AC, Industry standard cable colours, Manual override lever.
- Tower Motorised 2 Port Inline Zone Valve made to fit Central Heating / Boiler Systems
- These Tower 2-port motorised valves are designed to provide zone control for heating or hot water.
- Features: Synchronous motor drive / spring return action — 1m 5-core flex — Industry standard flex colours: brown; blue; grey; orange; green/yellow — Auxiliary switch — Switch rating 3A resistive — Integrated manual lever for commissioning purposes
- Specifications: Supply 230V 50Hz / power consumption 6W — Operating temperature range: +5 to 88 —
Maximum differential pressure 1 Bar — Maximum static pressure 10.0 Bar - Two port spring return valve with 22mm fittings and auxiliary switch (SPST), Switch rating 3Amp, Supply voltage 240V AC, Industry standard cable colours, Manual override lever.
